Some basic interview QA Genrally ask in interviews.

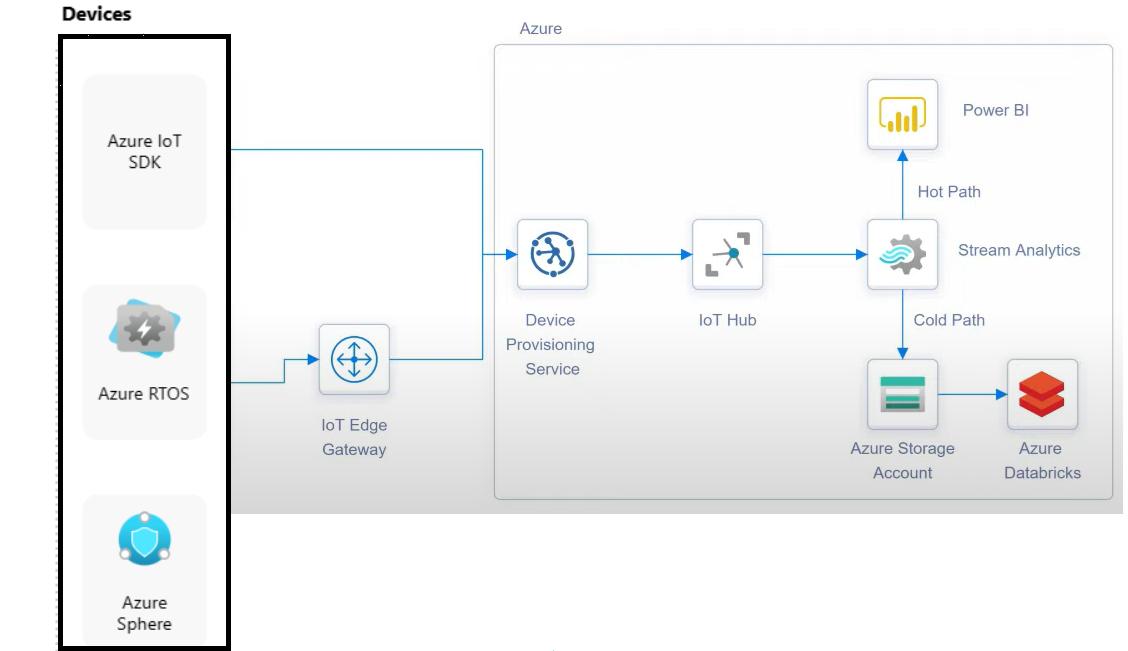

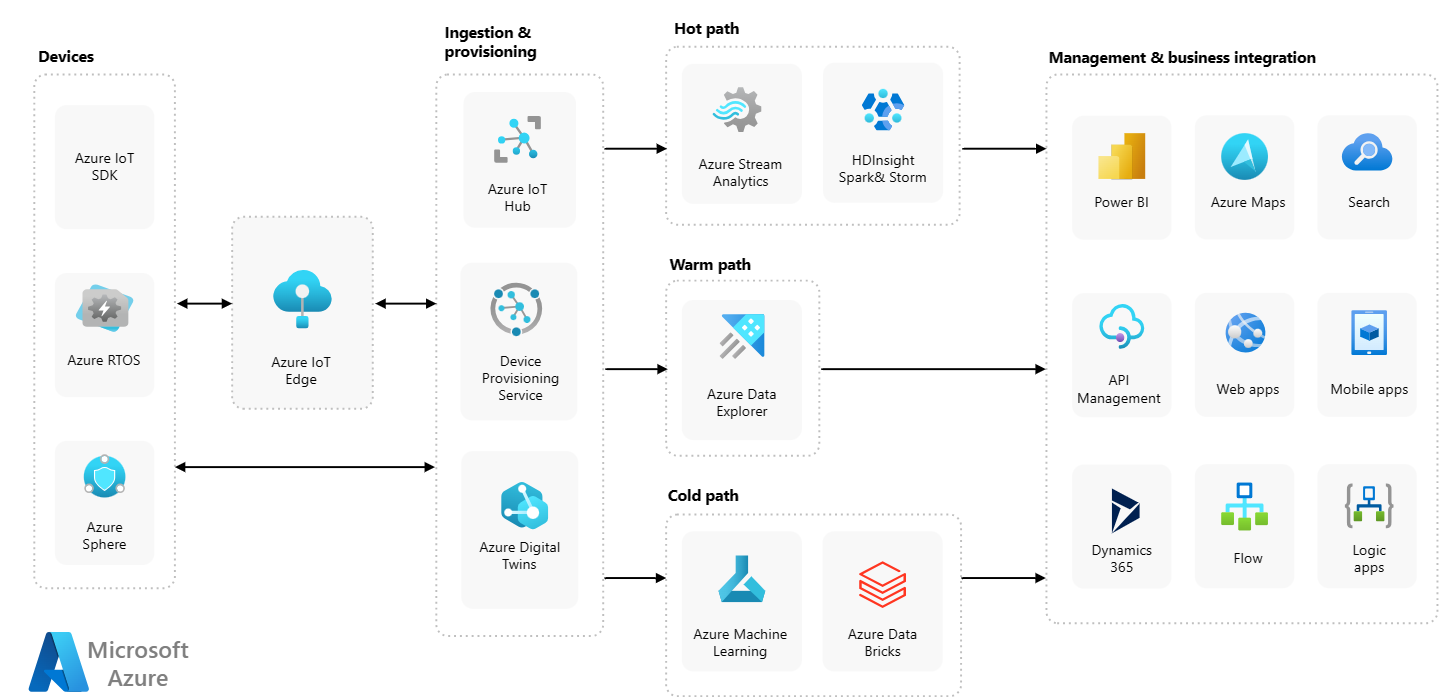

General Azure IoT Concepts: Q1: Can you explain the basic architecture of Azure IoT solutions? A1: Azure IoT solutions typically consist of three main components: IoT devices, IoT Hub, and backend services. IoT devices send telemetry data to IoT Hub, which acts as a central message hub. Backend services process and analyze the data.


Devices Azure IoT supports a large range of devices, from microcontrollers running Azure RTOS and Azure Sphere to developer boards like MX Chip and Raspberry Pi. Azure IoT also supports smart server gateways capable of running custom code. Devices might perform some local processing through a service such as Azure IoT Edge, or just connect directly to Azure so that they can send data to and receive data from the IoT solution.

When devices are connected to the cloud, there are several services that assist with ingesting data. Azure IoT Hub is a cloud gateway service that can securely connect and manage devices. Azure IoT Hub Device Provisioning Service (DPS) enables zero-touch, just-in-time provisioning that helps to register a large number of devices in a secure and scalable manner.

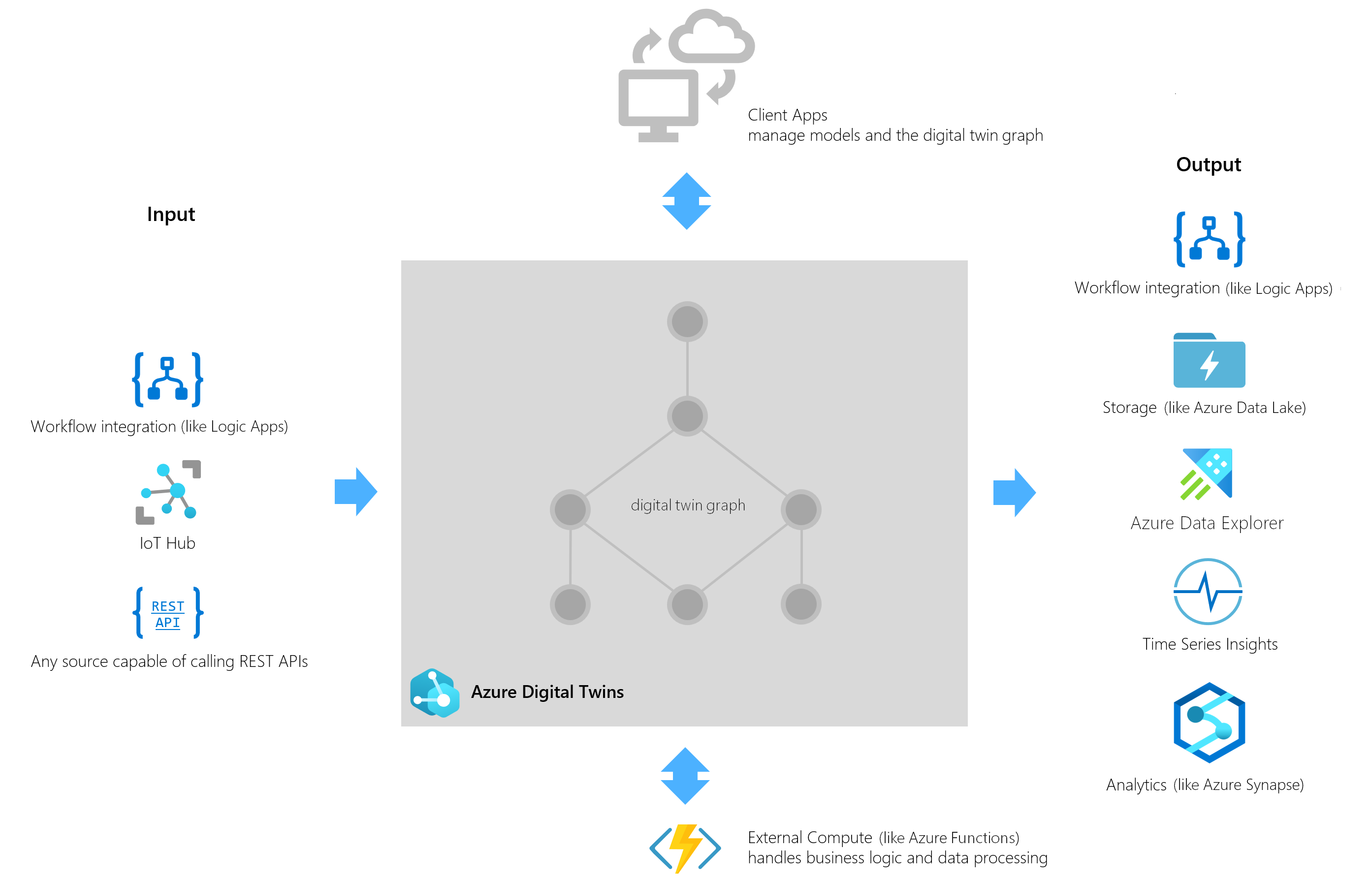

Azure Digital Twins enables virtual models of real world systems. Azure Digital Twins is a platform as a service (PaaS) offering that enables the creation of twin graphs based on digital models of entire environments, which could be buildings, factories, farms, energy networks, railways, stadiums, and more—even entire cities. These digital models can be used to gain insights that drive better products, optimized operations, reduced costs, and breakthrough customer experiences.


** Note:-** IoT Hub device twins are different from Azure Digital Twins digital twins. While IoT Hub device twins are maintained by your IoT hub for each IoT device that you connect to it, digital twins in Azure Digital Twins can be representations of anything defined by digital models and instantiated within Azure Digital Twins.

Tip

Version 2 of DTDL (Digital Twins Definition Language (DTDL)) is also used for data models throughout other Azure IoT services, including IoT Plug and Play and Time Series Insights. This compatibility helps you connect your Azure Digital Twins solution with other parts of the Azure ecosystem.

Here are some things you can do with event routes in Azure Digital Twins:

Connect Azure Digital Twins to Time Series Insights to track time series history of each twin Store Azure Digital Twins data in Azure Data Lake Analyze Azure Digital Twins data with Azure Synapse Analytics, or other Microsoft data analytics tools Integrate larger workflows with Logic Apps Send data to custom applications for flexible and customized actions

Q2: What is the purpose of IoT Edge in Azure IoT solutions? A2: IoT Edge extends cloud intelligence to edge devices, allowing data processing closer to the data source. It enables running cloud services, machine learning models, and custom code on edge devices.

Q3: How does Azure IoT Hub handle device-to-cloud communication? A3: Azure IoT Hub supports both device-to-cloud telemetry and device-to-cloud commands. Devices send telemetry data to the IoT Hub, and cloud applications can send commands to devices.

Security in Azure IoT: Q4: How can you ensure the security of data transmitted from IoT devices to Azure IoT Hub? A4: Security measures include using secure protocols (like MQTT or HTTPS), device authentication using SAS tokens or X.509 certificates, and ensuring end-to-end encryption.

STRIDE model.


Threat modeling for the Azure IoT reference architecture

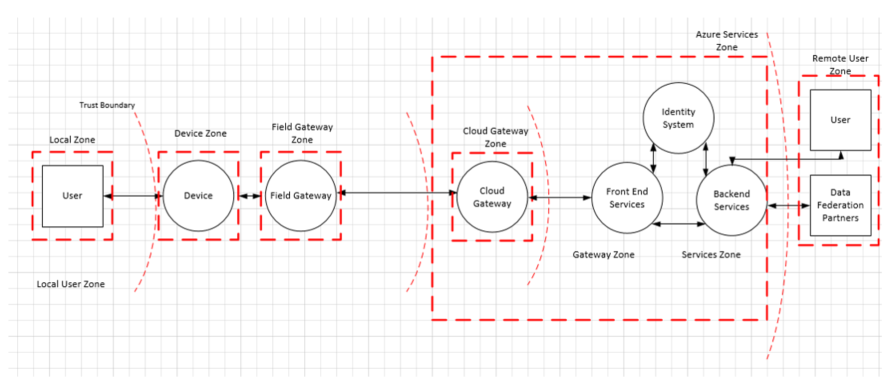

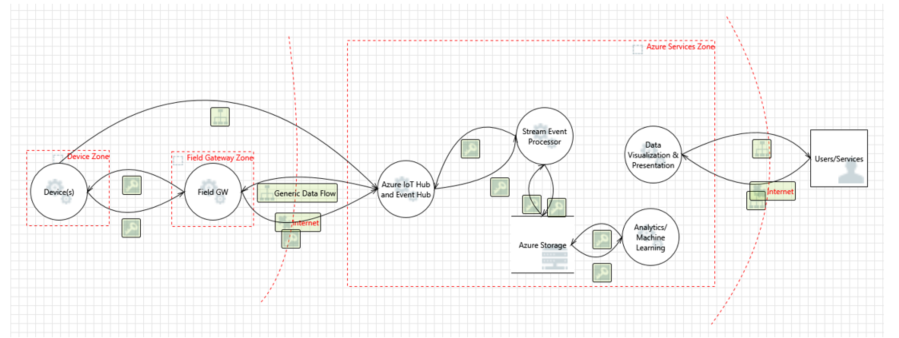

The following diagram provides a simplified view of the reference architecture by using a data flow diagram model:


The following table shows example mitigations to these threats. The values in the threat column are abbreviations:

  • Spoofing (S)
  • Tampering (T)
  • Repudiation (R)
  • Information disclosure (I)
  • Denial of service (D)
  • Elevation of privilege (E)

Q5: What is Device Twin in Azure IoT Hub, and how is it used for device management?

A5: Device Twin is a JSON document that stores device metadata and configuration information. It provides a consistent view of device state for both cloud and device, facilitating device management and configuration.

Q6: How do you implement secure communication between an IoT device and Azure IoT Hub?

A6: Secure communication involves using protocols like MQTT or AMQP, employing device-specific credentials (SAS tokens or X.509 certificates), and enabling Transport Layer Security (TLS) for encryption.

Practical Applications: Q7: Can you provide an example of a real-world scenario where Azure IoT solutions were beneficial?

A7: An example could be in predictive maintenance for industrial equipment. By deploying IoT sensors on machinery, organizations can monitor equipment health in real-time, predict failures, and schedule maintenance before breakdowns occur.

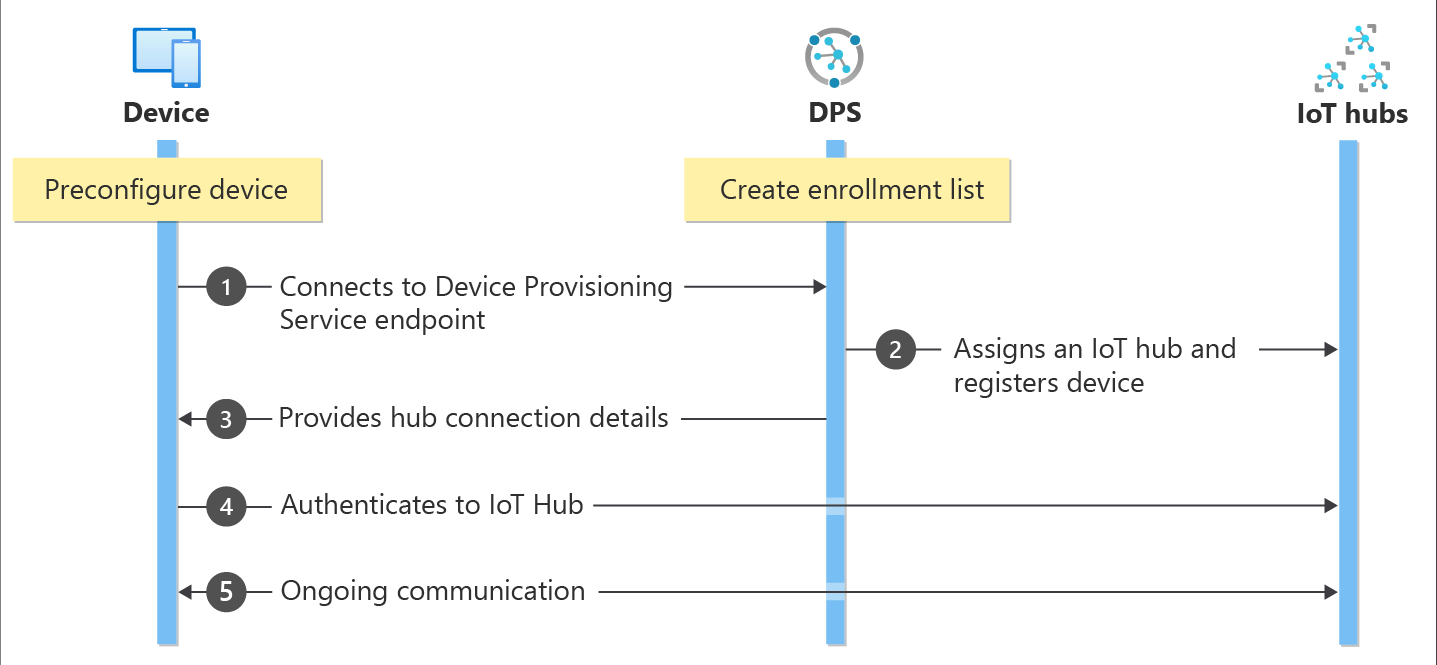

Q8: How would you implement device provisioning in Azure IoT for a large number of devices? A8: Azure IoT Device Provisioning Service (DPS) automates the provisioning of devices at scale. Devices are registered with DPS, and it assigns them to the appropriate IoT Hub based on rules and configurations.


Cross-platform support Just like all Azure IoT services, DPS works cross-platform with various operating systems. Azure offers open-source SDKs in various languages to facilitate connecting devices and managing the service. DPS supports the following protocols for connecting devices:

  • HTTPS
  • AMQP
  • AMQP over web sockets
  • MQTT
  • MQTT over web sockets
  • DPS only supports HTTPS connections for service operations.

Q9: Explain the role of Azure Stream Analytics in an IoT solution.

A9: Azure Stream Analytics allows real-time processing of streaming data. In an IoT solution, it can be used to analyze and filter data streams from devices, triggering actions or storing the processed data.

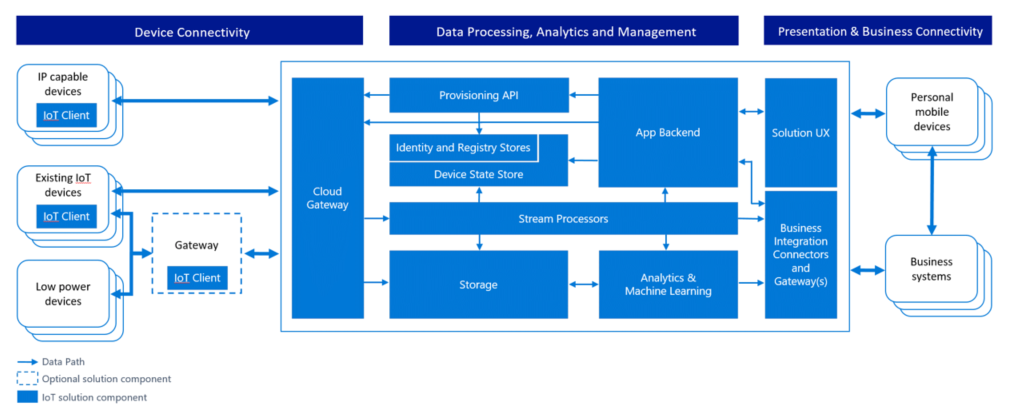

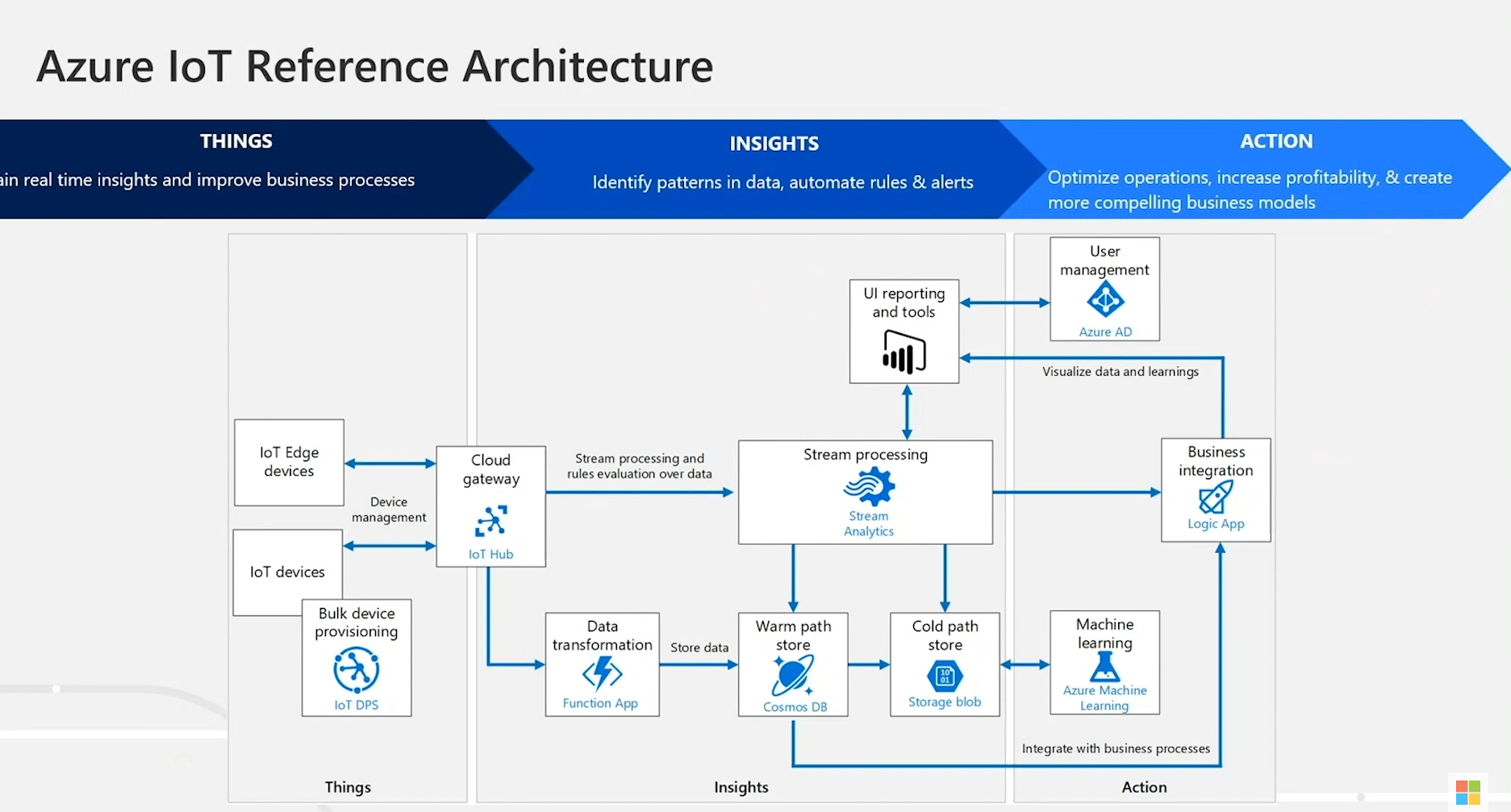

1. Can you explain the architecture of the Azure IoT Suite and how the different components work together? Azure IoT Suite architecture consists of several components that work together to provide end-to-end IoT solutions. The main components are:

  1. Azure IoT Hub: Manages device connectivity, authentication, and messaging between devices and cloud services.
  2. Device Provisioning Service (DPS): Automates the process of registering and provisioning devices securely in the IoT Hub.
  3. Azure Stream Analytics: Processes real-time data streams from devices, enabling complex event processing and anomaly detection.
  4. Azure Functions: Serverless compute service for executing custom logic on incoming messages or events.
  5. Azure Storage: Stores processed data, including Blob Storage for large files and Table Storage for structured data.
  6. Azure Machine Learning: Builds predictive models using historical data to enable intelligent decision-making.
  7. Power BI: Visualizes data insights through interactive dashboards and reports.


These components interact as follows: Devices connect to IoT Hub, which routes messages to Stream Analytics or Functions based on rules. Processed data is stored in Azure Storage and analyzed by Machine Learning. Insights are visualized in Power BI.

2. How would you secure the communication between an IoT device and Azure IoT Hub? To secure communication between an IoT device and Azure IoT Hub, follow these steps:

  1. Use Transport Layer Security (TLS) to encrypt data in transit. Ensure the device supports TLS 1.2 or higher.
  2. Implement X.509 certificates for device authentication. Create a unique certificate per device and store it securely on the device.
  3. Rotate keys and certificates periodically to minimize risks associated with compromised credentials.
  4. Utilize Azure IoT Hub’s built-in support for IP filtering to restrict incoming connections from specific IP addresses or ranges.
  5. Enable message enrichment to add custom properties to messages sent by devices, such as timestamps or geolocation data, which can be used for additional validation.
  6. Monitor and analyze device-to-cloud and cloud-to-device traffic using Azure IoT Hub’s monitoring features, like diagnostic logs and metrics, to detect anomalies and potential security threats.

3. What is the role of Device Provisioning Service in Azure IoT? How is it useful in large-scale IoT deployments?

Device Provisioning Service (DPS) in Azure IoT automates device registration and configuration, streamlining the process of connecting devices to IoT Hub. In large-scale deployments, DPS simplifies management by enabling secure, zero-touch provisioning for millions of devices, reducing manual intervention and human error.

DPS supports various attestation mechanisms like TPM, X.509 certificates, and symmetric keys, ensuring secure communication between devices and cloud services. It also integrates with other Azure services, such as Device Twins and Direct Methods, facilitating seamless device lifecycle management.

4. Can you explain the difference between stream analytics, machine learning, and time-series insights in terms of their application in Azure IoT solutions?

Stream Analytics, Machine Learning, and Time-Series Insights serve distinct purposes in Azure IoT solutions. Stream Analytics processes real-time data streams, enabling filtering, aggregation, and transformation of incoming data for immediate insights or storage. It is ideal for monitoring, anomaly detection, and real-time decision-making.

Machine Learning involves training models using historical data to make predictions or decisions based on new input data. In Azure IoT, it can be used for predictive maintenance, demand forecasting, and optimizing operations by analyzing patterns and trends from collected data.

Time-Series Insights provides a scalable, fully managed service for storing, visualizing, and querying time-series data. It enables users to explore and analyze large volumes of high-velocity data generated by IoT devices, facilitating root cause analysis, trend identification, and operational intelligence.

5. How would you troubleshoot connectivity issues between an IoT device and Azure IoT Hub?

First, verify the device’s connection string and ensure it matches Azure IoT Hub settings. Check for correct hostname, shared access key, and device ID.

Next, use Azure CLI or Portal to monitor device-to-cloud messages and check if they’re reaching IoT Hub. If not, inspect device logs for errors or exceptions related to connectivity.

Utilize Device Explorer or Visual Studio Code extension “Azure IoT Tools” to send cloud-to-device messages and observe device responses, identifying potential issues in message handling.

Examine network configurations, such as firewalls or proxies, that may block communication between the device and IoT Hub. Ensure necessary ports (e.g., 8883 for MQTT) are open.

Leverage Azure IoT SDKs’ built-in diagnostic tools, like retry policies and error reporting, to identify specific connectivity problems and apply appropriate fixes.

Consider using Azure IoT Hub’s built-in features, like Device Twin or Direct Methods, to remotely diagnose and troubleshoot device issues without physical access.

Finally, consult Azure IoT Hub documentation and community resources for known issues, best practices, and additional troubleshooting guidance.

6. How do DPS, IoT Hub, and IoT Edge work together in an end-to-end Azure IoT solution?

In an end-to-end Azure IoT solution, Device Provisioning Service (DPS), IoT Hub, and IoT Edge work together to enable seamless device management, communication, and edge computing.

DPS automates the process of registering and provisioning devices in the IoT solution. It securely provisions devices with unique identities and credentials, directing them to the appropriate IoT Hub for data ingestion and processing.

IoT Hub serves as the central message broker between devices and cloud services. It enables secure bi-directional communication, manages device identities, and supports various protocols like MQTT, AMQP, and HTTPS. IoT Hub also provides features such as device twins, direct methods, and jobs for remote monitoring and control.

IoT Edge extends cloud intelligence to edge devices, enabling local processing and analytics. It consists of a runtime that runs on devices and modules, which are containers encapsulating specific functionalities. Modules can be developed using various languages and frameworks, and deployed from the cloud to edge devices through IoT Hub.

Together, DPS ensures secure device enrollment, IoT Hub facilitates reliable communication, and IoT Edge brings advanced analytics closer to the source of data, creating a robust and scalable Azure IoT solution.

7. What considerations should be taken into account when selecting the best IoT protocol for a particular use case, such as MQTT, AMQP, or HTTPS?

When selecting the best IoT protocol for a use case, consider:

  1. Scalability: Assess the number of devices and messages expected in your system to ensure the chosen protocol can handle the load.
  2. Latency: Evaluate real-time requirements and choose a protocol with suitable latency characteristics.
  3. Security: Analyze security needs and select a protocol offering appropriate encryption, authentication, and authorization features.
  4. Interoperability: Ensure compatibility between devices, platforms, and systems by choosing a widely supported protocol or one that meets specific integration requirements.
  5. Network conditions: Consider network bandwidth, reliability, and cost when selecting a protocol, as some are more efficient and resilient under constrained conditions.
  6. Complexity: Balance ease of implementation and maintenance against advanced features offered by different protocols.

8. Can you explain how Azure IoT Edge and Azure Functions could be integrated together in a solution?

Azure IoT Edge and Azure Functions can be integrated to create a powerful, scalable solution for processing data at the edge. This integration involves deploying Azure Functions as custom modules on IoT Edge devices.

First, develop an Azure Function in your preferred language, such as C#, JavaScript, or Python. The function should process incoming messages from IoT devices, perform necessary transformations, and send the results to other services or storage.

Next, create a Docker container image of the Azure Function using the appropriate base image for your chosen language. Push this image to a container registry, like Azure Container Registry (ACR), for easy deployment.

In the Azure IoT Hub, define an IoT Edge deployment manifest that includes the Azure Function module along with any other required modules, such as the IoT Edge runtime and additional custom modules. Specify the container image URI from ACR and provide necessary environment variables and bindings for the Azure Function.

Deploy the manifest to target IoT Edge devices, which will automatically pull the container images and run the specified modules. The Azure Function will now execute on the edge device, processing data locally and reducing latency and bandwidth usage.

Monitor and manage the deployed solution through Azure IoT Hub, leveraging its built-in features for device management, monitoring, and diagnostics.

9. What are the key factors to consider when designing an IoT solution to scale, both in terms of devices and data throughput?

When designing an IoT solution for scalability, consider the following key factors:

  1. Device Management: Implement a robust device provisioning and management system to handle increasing numbers of devices efficiently.
  2. Data Ingestion: Choose scalable data ingestion services like Azure IoT Hub or Event Hubs to accommodate growing data throughput.
  3. Data Processing: Optimize stream processing with solutions like Azure Stream Analytics or Apache Kafka to process large volumes of data in real-time.
  4. Storage: Select appropriate storage options such as Azure Blob Storage or Cosmos DB based on data type, access patterns, and retention requirements.
  5. Security: Ensure end-to-end security by implementing encryption, authentication, and authorization mechanisms across devices, communication channels, and cloud services.
  6. Monitoring & Diagnostics: Utilize monitoring tools like Azure Monitor and Application Insights to track performance metrics and diagnose issues proactively.
  7. Cost Optimization: Regularly review resource utilization and costs, applying strategies like auto-scaling, reserved instances, and serverless architectures to optimize expenses.

10. Can you describe the scenarios in which you would choose to use the IoT Hub as a gateway rather than connecting the devices directly to the IoT Hub?

In scenarios where devices have limited connectivity, processing power, or security capabilities, using IoT Hub as a gateway is beneficial. Examples include:

  1. Legacy Devices: When integrating existing devices that don’t support modern communication protocols like MQTT, AMQP, or HTTPS, a gateway can translate and forward messages to IoT Hub.
  2. Network Constraints: In environments with intermittent or low-bandwidth connections, a gateway can aggregate data from multiple devices and send it in batches to optimize network usage.
  3. Security: If devices cannot implement desired security features (e.g., encryption), a gateway can provide an additional layer of protection by handling secure communications with IoT Hub.
  4. Edge Processing: For real-time analytics or local decision-making, a gateway can perform edge computing tasks before sending relevant data to the cloud.
  5. Device Management: A gateway simplifies device management by consolidating firmware updates, authentication, and configuration for connected devices.

11. How would you optimize the battery life or resource consumption of an IoT device when sending telemetry data to the Azure IoT Hub?

To optimize battery life and resource consumption of an IoT device when sending telemetry data to Azure IoT Hub, follow these steps:

  1. Use efficient communication protocols like MQTT or AMQP that minimize overhead.
  2. Implement batching by aggregating multiple messages into a single transmission, reducing the number of connections established with IoT Hub.
  3. Utilize adaptive sampling techniques to send only relevant data changes instead of transmitting every data point.
  4. Leverage edge computing capabilities to preprocess and filter data locally before sending it to IoT Hub, offloading processing tasks from the device.
  5. Schedule transmissions during low-power states or periods of inactivity to conserve energy.
  6. Optimize device firmware and hardware components for power efficiency, such as using sleep modes and selecting low-power microcontrollers.

12. What are the limitations and considerations of using Azure Blob storage for storing large amounts of IoT data?

Azure Blob storage is a scalable and cost-effective solution for storing IoT data, but it has limitations and considerations:

  1. Data organization: As the volume of IoT data increases, organizing and managing blobs can become challenging. Implementing a proper naming convention and partitioning strategy is crucial.

  2. Access patterns: Optimal performance depends on understanding access patterns. Hot tier is suitable for frequently accessed data, while cool and archive tiers are better for infrequently accessed or long-term storage.

  3. Latency: Depending on the chosen redundancy option (LRS, ZRS, GRS, RA-GRS), there might be increased latency in accessing data due to replication across regions.

  4. Scalability: While Azure Blob storage scales automatically, you may encounter throttling if requests exceed scalability targets. Monitoring and adjusting your design accordingly is essential.

  5. Security: Protecting sensitive IoT data requires implementing proper authentication, authorization, and encryption mechanisms.

  6. Data processing: Blob storage doesn’t provide built-in analytics capabilities. Integrating with other Azure services like Stream Analytics, Functions, or Databricks is necessary for real-time or batch processing.

  7. Cost: Considerations include storage capacity, access frequency, redundancy options, and data transfer costs when estimating overall expenses.

13. Describe how to configure IoT Hub message routing to send messages to different endpoints based on specific conditions. To configure IoT Hub message routing, follow these steps:

  1. Create desired endpoints: In the Azure portal, navigate to your IoT Hub and select “Endpoints” under “Messaging.” Add custom endpoints like Event Hubs, Service Bus Queues, or Topics by clicking “+Add.”

  2. Define routes: Go to “Message Routing” under “Messaging,” click “+Add” to create a new route. Provide a name, choose an endpoint from step 1, and set the Data Source as “Device Messages.”

  3. Specify conditions: Use query expressions based on message properties or application properties to filter messages. For example, use “temperature > 30” to route messages with temperature above 30.

  4. Set priority: Assign priorities to routes in case of overlapping conditions. Lower values indicate higher priority.

  5. Test routes: Utilize the “Test Route” feature to verify if your conditions work correctly by providing sample messages.

  6. Monitor routing: Check the “Metrics” section under “Monitoring” to ensure successful message delivery and troubleshoot issues.

14. How can you apply real-time processing and filtering in IoT messages through Stream Analytics?

To apply real-time processing and filtering in IoT messages through Azure Stream Analytics, follow these steps:

  1. Create an Azure IoT Hub to collect data from devices.
  2. Set up a Stream Analytics job with the IoT Hub as input and desired output (e.g., Power BI, Blob Storage).
  3. Define a query for processing and filtering incoming data using SQL-like syntax, including SELECT, WHERE, GROUP BY, and windowing functions like TumblingWindow or HoppingWindow.
  4. Apply transformations, aggregations, or calculations on the data stream, such as calculating averages or detecting anomalies.
  5. Configure output actions based on processed data, e.g., sending alerts or updating dashboards.
  6. Monitor the Stream Analytics job performance and adjust scaling options if needed.

Example query:


SELECT
    deviceId,
    AVG(temperature) AS avgTemperature
FROM
    iothubinput TIMESTAMP BY timeCreated
WHERE
    temperature > 25
GROUP BY
    deviceId, TumblingWindow(minute, 5)

  1. How would you secure sensitive information transmitted from IoT devices to Azure while maintaining performance and scalability? To secure sensitive information transmitted from IoT devices to Azure while maintaining performance and scalability, implement the following strategies:

  2. Use device authentication with individual identities for each device, leveraging Azure IoT Hub’s built-in support for X.509 certificates or symmetric keys.

  3. Enable transport layer security (TLS) to encrypt data in transit between devices and Azure IoT services, ensuring confidentiality and integrity of communications.

  4. Optimize network performance by using Azure IoT Edge to process and filter data locally on edge devices before sending it to the cloud, reducing latency and bandwidth consumption.

  5. Implement message routing in IoT Hub to efficiently route messages to appropriate endpoints based on specific conditions, improving overall system performance.

  6. Utilize Azure Stream Analytics to analyze and process data streams in real-time, enabling timely insights and actions without overloading the system.

  7. Monitor and manage device health and connectivity using Azure IoT Hub Device Management features, allowing proactive identification and resolution of potential issues.

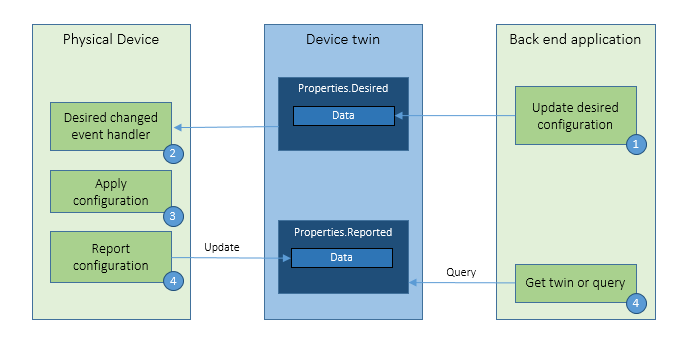

16. Can you provide examples of how to use Azure IoT Hub’s device twin feature to manage device configurations and properties?

Azure IoT Hub’s device twin feature enables synchronization and management of device configurations and properties. Here are two examples:


Example 1: Updating desired properties To update a device’s desired property, such as setting the target temperature for a thermostat, use the following code snippet in your back-end application:

var twin = await registryManager.GetTwinAsync(deviceId);
var patch =
    @"{
        properties: {
            desired: {
                targetTemperature: 25
            }
        }
    }";

await registryManager.UpdateTwinAsync(twin.DeviceId, patch, twin.ETag); Example 2: Handling reported properties On the device side, listen for changes in desired properties and report the updated values using the following code snippet:

// Listen for desired property updates
deviceClient.SetDesiredPropertyUpdateCallback(OnDesiredPropertyChanged, null);
async Task OnDesiredPropertyChanged(TwinCollection desiredProperties, object userContext)
{
    // Update device configuration based on received desired properties
    if (desiredProperties.Contains("targetTemperature"))
    {
        int newTargetTemp = desiredProperties["targetTemperature"];
        // Apply new target temperature to the device
        // Report updated value
        var reportedProperties = new TwinCollection();
        reportedProperties["targetTemperature"] = newTargetTemp;
        await deviceClient.UpdateReportedPropertiesAsync(reportedProperties);
    }
}

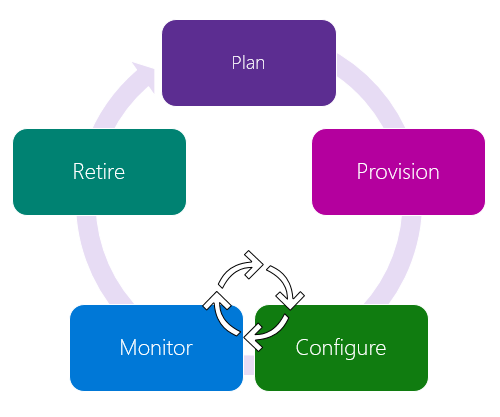

17. What is Device Management in Azure IoT and what are its key features?

Device Management in Azure IoT refers to the process of monitoring, configuring, and maintaining IoT devices connected to an Azure IoT Hub. It ensures seamless device operation, security, and scalability within an IoT solution.

Key features include:

  1. Device Twins: JSON documents that store metadata, configurations, and conditions for each device.
  2. Direct Methods: Remote procedure calls allowing cloud-to-device communication for real-time actions.
  3. Device Jobs: Bulk operations for managing multiple devices simultaneously, such as firmware updates or configuration changes.
  4. Automatic Device Management: Rule-based configurations applied to new and existing devices based on their properties.
  5. Device Provisioning Service (DPS): Secure, scalable onboarding of devices to IoT Hub with zero-touch provisioning.
  6. Security: Integration with Azure Active Directory, X.509 certificates, and hardware security modules for authentication and encryption.

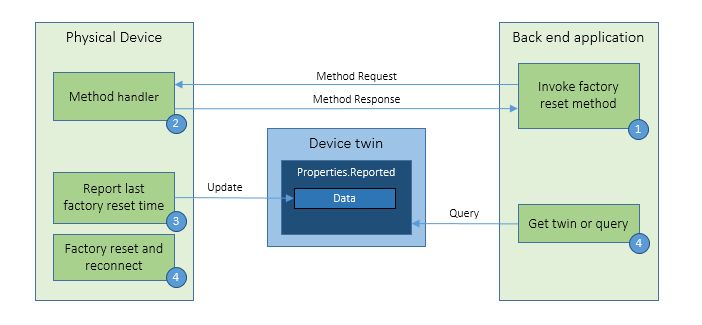

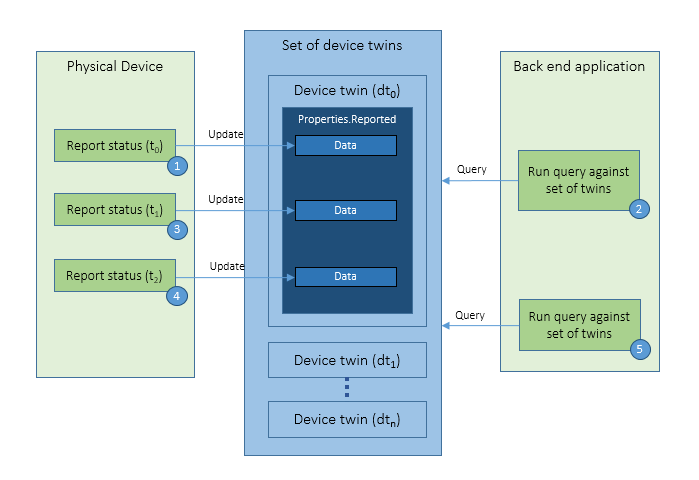

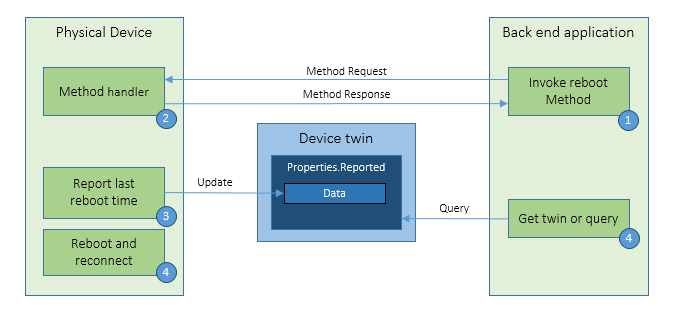

Device management patterns

  • Reboot


  • Factory Reset:


  • Configuration


  • Reporting progress and status:


18. How would you troubleshoot long turnaround times for IoT commands sent to devices via the IoT Hub?

To troubleshoot long turnaround times for IoT commands sent via the IoT Hub, follow these steps:

  1. Check device connectivity: Ensure devices are connected to the IoT Hub and have stable network connections.
  2. Monitor message traffic: Use Azure Monitor to track messages between devices and IoT Hub, identifying bottlenecks or delays.
  3. Analyze Device Twin properties: Review reported and desired properties in Device Twins to identify discrepancies causing command delays.
  4. Evaluate routing rules: Verify that custom routing rules are correctly configured to route messages efficiently.
  5. Optimize message size: Reduce payload sizes by compressing data or using efficient serialization formats like CBOR or MessagePack.
  6. Adjust throttling limits: Consider increasing IoT Hub’s throughput units (if applicable) or implementing back-off strategies on devices to avoid exceeding rate limits.
  7. Investigate SDKs and libraries: Ensure proper usage of SDKs and libraries, updating them if necessary.

19. How do you use IoT Hub messaging patterns, such as device-to-cloud and cloud-to-device, to implement bi-directional communication?

To implement bi-directional communication using Azure IoT Hub messaging patterns, follow these steps:

  1. Set up an IoT Hub instance in the Azure portal.
  2. Register devices with the IoT Hub to establish secure connections and obtain device-specific connection strings.
  3. Implement device-to-cloud (D2C) messaging by sending telemetry data from devices to the IoT Hub using MQTT, AMQP, or HTTPS protocols. Use the DeviceClient class’s SendEventAsync method for this purpose.

Example:

var deviceClient = DeviceClient.CreateFromConnectionString(deviceConnectionString);
var message = new Message(Encoding.ASCII.GetBytes("Telemetry Data"));
await deviceClient.SendEventAsync(message);

  1. Process D2C messages in the cloud by creating a back-end application that reads from the built-in Event Hubs-compatible endpoint provided by IoT Hub.

  2. Implement cloud-to-device (C2D) messaging by sending commands or notifications from the back-end application to devices using the ServiceClient class’s SendAsync method.

Example:

var serviceClient = ServiceClient.CreateFromConnectionString(serviceConnectionString);
var command = new Message(Encoding.ASCII.GetBytes("Command Data"));
await serviceClient.SendAsync(deviceId, command);
  1. On the device side, receive C2D messages using the DeviceClient class’s ReceiveAsync method and process them accordingly.

Example:

var receivedMessage = await deviceClient.ReceiveAsync();
if (receivedMessage != null)
{
    var commandData = Encoding.ASCII.GetString(receivedMessage.GetBytes());
    // Process command data
    await deviceClient.CompleteAsync(receivedMessage);
}

20. How do you monitor multiple IoT devices in real-time and receive notifications based on specific events or conditions? Explain how you would achieve this using Azure IoT.

To monitor multiple IoT devices in real-time and receive notifications based on specific events or conditions, use Azure IoT Hub and Azure Stream Analytics. Follow these steps:

  1. Set up an Azure IoT Hub to manage device connections, authentication, and messaging.
  2. Register your IoT devices with the IoT Hub using Device Provisioning Service (DPS) for secure provisioning.
  3. Configure devices to send telemetry data to the IoT Hub using supported protocols like MQTT, AMQP, or HTTPS.
  4. Create a Stream Analytics job that reads incoming telemetry data from the IoT Hub’s built-in Event Hub-compatible endpoint.
  5. Define queries in Stream Analytics to filter, aggregate, and analyze data in real-time, identifying specific events or conditions of interest.
  6. Use output sinks in Stream Analytics to route processed data to desired destinations, such as sending notifications via Azure Functions, Logic Apps, or directly to users through email or SMS.

21. How do you design an IoT solution to address the challenges of limited or intermittent network connectivity?

To design an IoT solution addressing limited or intermittent network connectivity, consider the following:

  1. Use Azure IoT Edge: Deploy cloud intelligence to edge devices, enabling local processing and reducing dependency on continuous connectivity.
  2. Implement offline data storage: Utilize local storage on edge devices to store data temporarily during connectivity loss, ensuring no data loss.
  3. Data synchronization: Once connectivity is restored, synchronize stored data with the cloud for further analysis and processing.
  4. Optimize communication protocols: Employ lightweight messaging protocols like MQTT or AMQP to minimize bandwidth usage and improve efficiency.
  5. Device Twins: Leverage Azure IoT Hub’s device twins feature to maintain desired and reported states of devices, allowing seamless configuration updates even when offline.
  6. Retry policies: Implement exponential backoff strategies in case of failed transmissions, reducing load on the network and increasing chances of successful reconnection.

22. What is the role of Event Grid in Azure IoT solutions and how does it differ from IoT Hub messaging?

Event Grid plays a crucial role in Azure IoT solutions by enabling reactive programming through event-driven architectures. It facilitates seamless communication between various services and applications by routing events from publishers to subscribers, ensuring real-time responsiveness.

In contrast, IoT Hub messaging focuses on device-to-cloud and cloud-to-device communications for IoT devices. It provides bi-directional communication with built-in support for telemetry ingestion, command execution, and device management operations.

The key differences between Event Grid and IoT Hub messaging are:

  1. Purpose: Event Grid is designed for general-purpose event-based communication, while IoT Hub targets IoT-specific scenarios.
  2. Communication Pattern: Event Grid follows a publish-subscribe model, whereas IoT Hub supports both device-to-cloud and cloud-to-device messaging.
  3. Scalability: Event Grid can handle millions of events per second, making it suitable for large-scale distributed systems. IoT Hub offers tiered pricing based on the number of messages exchanged.
  4. Integration: Event Grid easily integrates with other Azure services like Functions, Logic Apps, and Storage, while IoT Hub primarily connects with IoT devices and related services.

23. Can you explain how you would integrate Azure Active Directory (AD) with Azure IoT for secure authentication and authorization?

To integrate Azure Active Directory (AD) with Azure IoT for secure authentication and authorization, follow these steps:

  1. Register an application in Azure AD: Create a new app registration in the Azure portal under “App registrations.” Note the Application ID and Directory ID.

  2. Configure permissions: In the registered app’s settings, add required API permissions for Azure IoT Hub and grant admin consent.

  3. Obtain access token: Use client credentials flow to request an access token from Azure AD by providing the Application ID, Directory ID, and Client Secret.

  4. Set up custom roles in Azure IoT Hub: Define custom roles with specific permissions for devices, modules, or users in the IoT Hub’s Role-Based Access Control (RBAC).

  5. Assign custom roles to the registered app: In the Azure portal, navigate to the IoT Hub’s “Access control (IAM)” section and assign the custom role to the registered app using its Application ID.

  6. Authenticate requests: Include the obtained access token as a Bearer token in the Authorization header of all requests made to Azure IoT Hub APIs.

24. What are Managed Identities in Azure, and how can they be used with cloud-based IoT services to secure access and minimize the risks?

Managed Identities in Azure are a feature of Azure Active Directory (AAD) that automatically manages the creation, maintenance, and security of service principals. They eliminate the need for developers to manage credentials manually, reducing potential security risks.

In cloud-based IoT services, Managed Identities can be used to secure access by assigning an identity to IoT devices or services like Azure IoT Hub, Stream Analytics, or Functions. This allows them to authenticate with other Azure services using AAD without storing any credentials in code or configuration files.

To implement this, first enable a system-assigned or user-assigned managed identity on the IoT resource. Then, grant necessary permissions to the managed identity through role assignments in target resources like storage accounts or databases.

For example, if an Azure Function processes IoT data and stores it in a Cosmos DB, assign a managed identity to the function and give it “Cosmos DB Data Contributor” role on the database. The function will then securely access the database without needing explicit connection strings or keys.

Using Managed Identities simplifies authentication, enhances security by minimizing credential exposure, and eases management by automating lifecycle tasks such as key rotation.

25. How would you create and manage digital certificates to achieve secure device authentication and establish trust within IoT solutions deployed on Azure?

To create and manage digital certificates for secure device authentication in Azure IoT, follow these steps:

  1. Obtain a root CA certificate: Either generate a self-signed root CA certificate or purchase one from a trusted Certificate Authority (CA).

  2. Create device certificates: Generate individual X.509 certificates for each IoT device, signed by the root CA certificate.

  3. Upload root CA certificate to Azure IoT Hub: In the Azure portal, navigate to your IoT Hub, select “Certificates,” then upload the root CA certificate.

  4. Verify the root CA certificate: To establish trust, create a verification certificate signed by the root CA, then upload it to Azure IoT Hub and verify it.

  5. Configure IoT devices with their certificates: Install the device-specific certificates on each IoT device, ensuring they have the private key and the full certificate chain.

  6. Enable X.509 authentication in IoT Hub: In the Azure portal, configure your IoT Hub to use X.509 CA-signed certificates for device authentication.

  7. Monitor and manage certificates: Regularly check the expiration dates of your certificates and replace them as needed. Revoke compromised certificates using the Azure portal or APIs.
